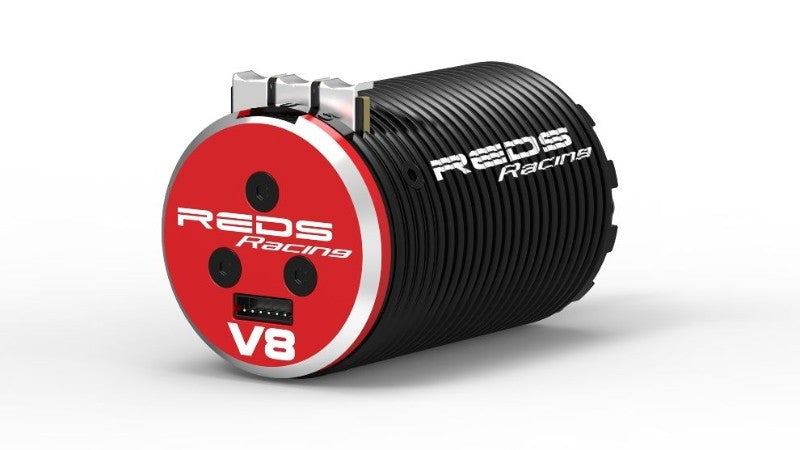

REDS Racing V8 1/8th Scale Buggy Competition Brushless Motor 1700kv
MTEG0003
$259.95
or make 4 interest-free payments of
$64.99 NZD
fortnightly with
More info
The Reds Racing 1700kV V8 Gen 2 4-Pole Sensored 1/8 Scale Brushless Motor features a redesigned stator to improve heat dissipation, efficiency and to decrease iron loss. The stator has been combined with a redesigned rotor for a better throttle response, while the updated de-anodized can helps to increase the efficiency heat dissipation.
Determined to produce a ROAR Approved 1/8 electric motor that lives up to the level of quality and performance found in a Reds nitro engine, Reds engineers and team drivers spent over a year developing the V8 series of 1/8 electric motors. Reds 1/8th off-road motors were designed to provide exceptional power and smoothness, with superior control and extremely high efficiency. The heavily finned CNC-machined heat sink aluminium can, allows the V8 motor to operate at very low temperatures in every condition delivering exceptional reliability. Capable of both sensored and sensorless operation, the V8 line is ideal for all high speed buggy and truggy applications.
Features:
Aluminium End Cup for Precise Timing Tuning
Precision Ball Bearings Deliver High RPM
Silver Plated Solder Tabs Offer Low Resistance and High Power
CNC Machined Can is Lightweight and Offers Optimized Air Flow
High Purity Copper Windings for Maximum Conductivity
High Strength Balanced Rotor for High Speed
Specifications:
Battery Voltage Max: 22.2V 6S LiPo
Diameter: 42mm
Length: 69mm
Shaft Diameter: 5mm
Shaft Length: 18mm
Weight: 320g
Kv: 1700
Power: 1670W
Max Current: 110A
EFRA Approved: Yes
Determined to produce a ROAR Approved 1/8 electric motor that lives up to the level of quality and performance found in a Reds nitro engine, Reds engineers and team drivers spent over a year developing the V8 series of 1/8 electric motors. Reds 1/8th off-road motors were designed to provide exceptional power and smoothness, with superior control and extremely high efficiency. The heavily finned CNC-machined heat sink aluminium can, allows the V8 motor to operate at very low temperatures in every condition delivering exceptional reliability. Capable of both sensored and sensorless operation, the V8 line is ideal for all high speed buggy and truggy applications.
Features:
Aluminium End Cup for Precise Timing Tuning
Precision Ball Bearings Deliver High RPM
Silver Plated Solder Tabs Offer Low Resistance and High Power
CNC Machined Can is Lightweight and Offers Optimized Air Flow
High Purity Copper Windings for Maximum Conductivity
High Strength Balanced Rotor for High Speed
Specifications:
Battery Voltage Max: 22.2V 6S LiPo
Diameter: 42mm
Length: 69mm
Shaft Diameter: 5mm
Shaft Length: 18mm
Weight: 320g
Kv: 1700
Power: 1670W
Max Current: 110A
EFRA Approved: Yes
