SWORKz S14-3 1/10 4WD EP Off Road Racing Buggy Pro Kit
SW-910032
$799.95
or make 4 interest-free payments of
$199.99 NZD
fortnightly with
More info
IN STOCK NOW!
Based on the success of the S14-2, SWORKz further developed its 1/10 off road buggy and came out with the S14-3.
One of its most unique features is the 5mm Axle Universal Cross Drive Shafts that were specially designed and made from SWORKz 1/8th buggy steel material.
For carpet off road racing, we gave up the pivot ball system and went with the C-Hub steering system. With the new C-Hub system, the S14-3 now has a new and improved front and rear suspension shock system.
The S14-3 new developed front and rear arms are made from strong composite nylon materials.
Standard included in the kit is the new Centre Slipper Clutch System.
The T-7075 aluminum chassis with its center flex system gives more rear grip. When equipped with the new front and rear upper carbon decks, the buggy has even more traction.
The S14-3 includes many high quality parts, a refined shock system and option parts.
Many SWORKz Factory Team Option Parts are included.
SWORKz utilizes only the highest quality materials and industry leading manufacturing processes resulting in a faster, stronger, and more reliable racing car.
The S14-3 Pro Kit is designed to win.
S14-3 Pro Kit Features:
- T7075 aluminium B.H.C (Black Hard Coated) chassis with its new centre flex system
- High performance CNC crown gears and pinion gears
- Unique 5mm Axle Universal Cross Drive Shafts
- New Centre Slipper Clutch System

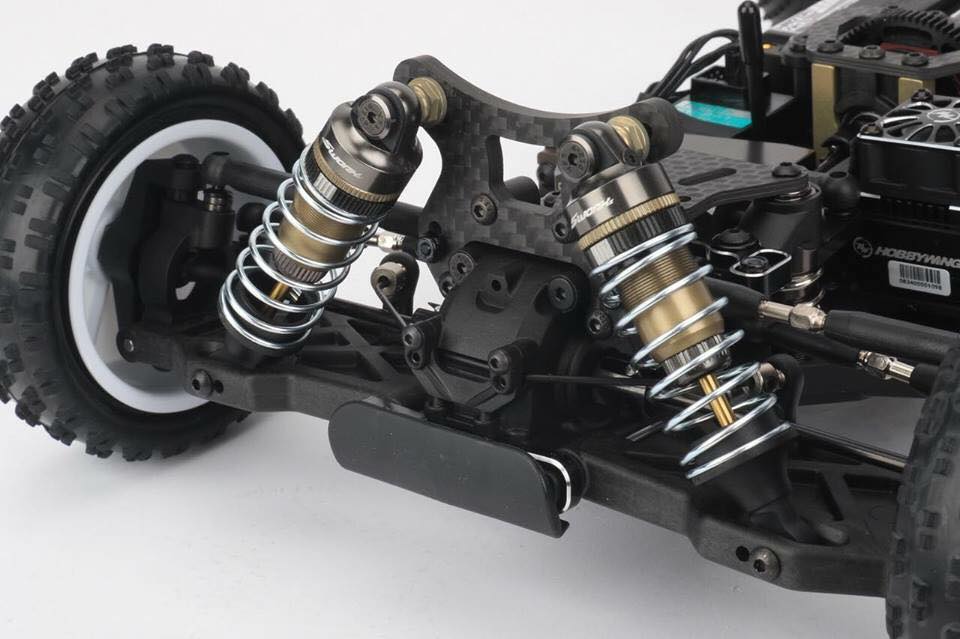

- New Pro-composite Carbon Fibre shock towers with new geometry Shock Positions
- New design shock bodies with 3mm Teflon hard coated shafts
- Front and rear arms made from strong composite nylon materials

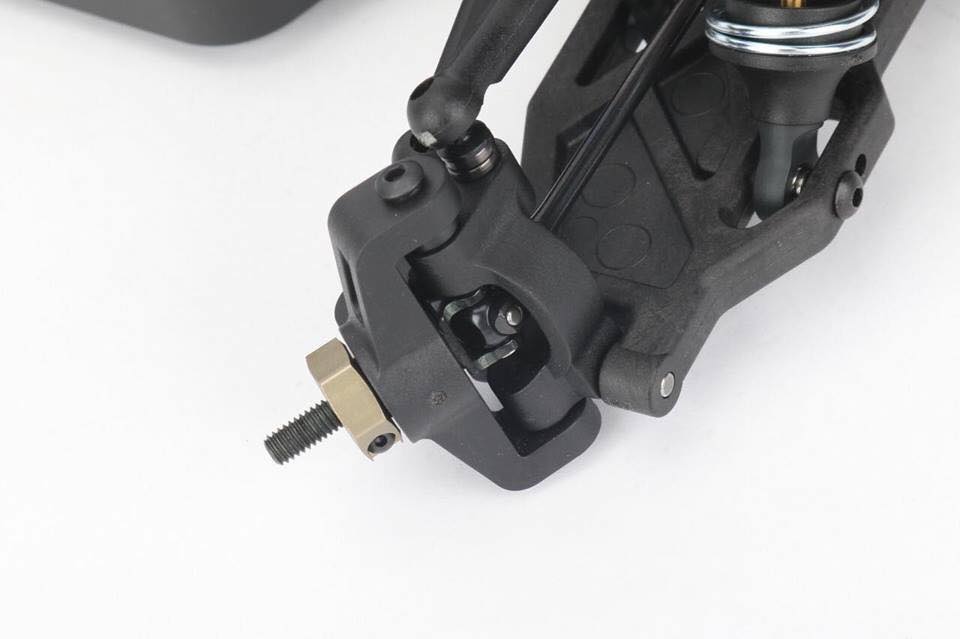

- Kit comes standard with both, 9 and 11 degree front C Hubs
- New Adjustable Steering Plate with New Bell Crank
- Full aluminum arm holders with adjustable Toe-in Block
- Aluminum Steering Servo Mount
- Velocity 2.0 Body Shell with Formula Bulkhead Wing
- 2 Channel Radio System
- Motor & Electric Speed Control
- Steering Servo
- Wheels, Tires & CA Glue
- Pinion Gear
- Polycarbonate Paint for Body
- 2S Shorty LiPo Battery Pack
- Compatible Battery Charger

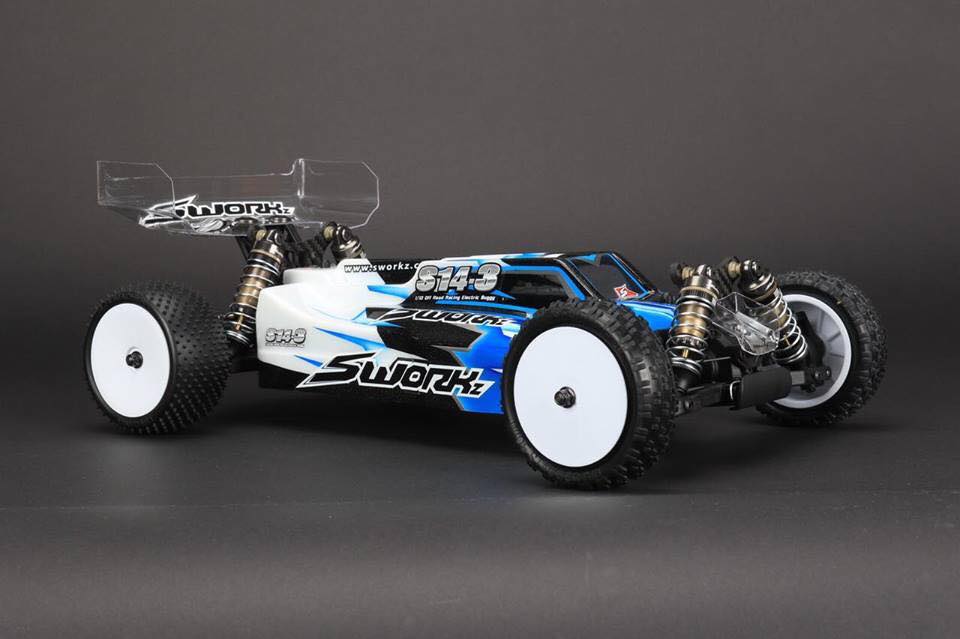

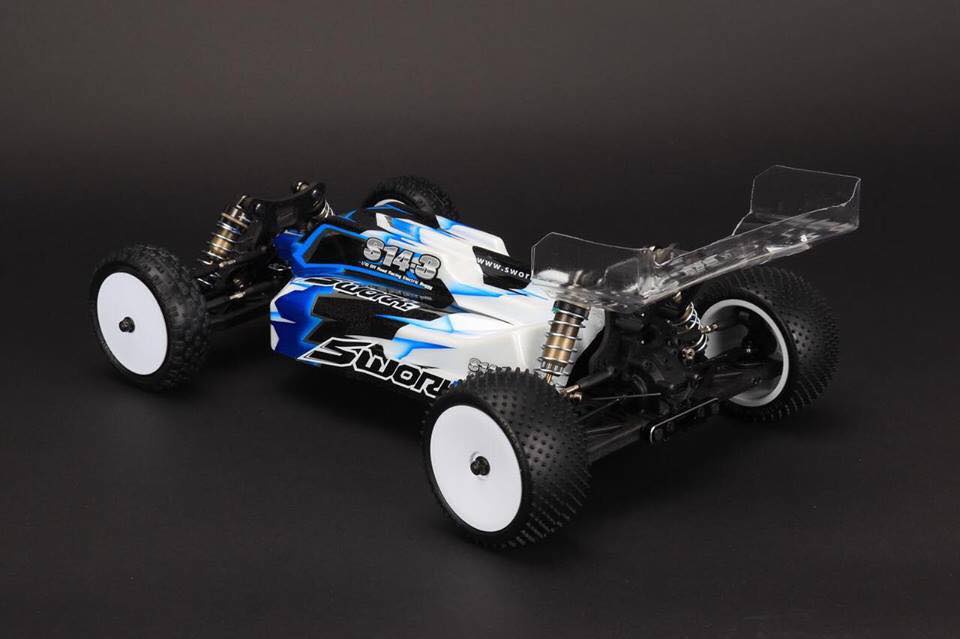

NOTE: Completed vehicle shown for illustrative purposes only and is not included.
Download Manual
https://www.redsrc.co.nz/collections/downloads-manuals
S14-3 Specification:
|
Length： |
385mm |
|
Width： |
245mm |
|
Height： |
170mm |
|
Ground Clearance： |
50mm |
|
Wheelbase： |
282-285mm |
|
Track： |
F:232mm /R222mm |
|
Gear Ratio: |
C:81T/19T, F/R 42/17T |
|
Weight： |
1698g (Race condition) |
